Antibody Purification Columns

MonoSpin ProL

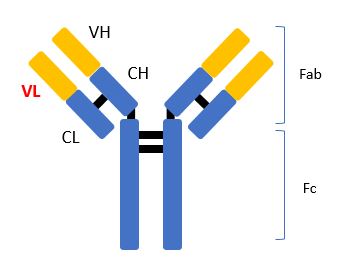

Protein L is a protein which has an affinity for the variable region of the immunoglobulin kappa light chain (VL). The ligand of MonoSpin ProL is the Protein L used for KANEKA KanCap^TM L. MonoSpin ProL enables purification of antibodies including kappa light chains or their fragments such as scFv, Fab and F(ab')2.

Feature

Rapid purification and high recovery of antibodies

Specifications

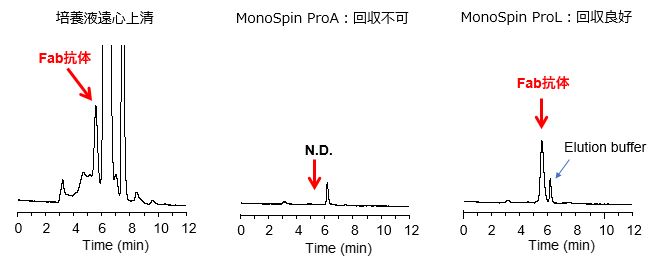

Selectivity of MonoSpin ProL

MonoSpin ProL can recover Fab antibodies, which cannot be recovered by MonoSpin ProA.

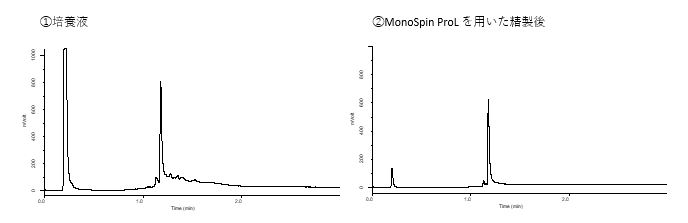

Purification of Fab by MonoSpin ProL

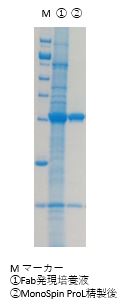

The Fab was purified from CHO cell culture fluid by MonoSpin ProL. The HPLC results before and after purification were compared using MonoSelect RP-mAb as the analytical column. This comparison and the result of SDS-PAGE confirm purification of Fab by MonoSpin ProL.

Conditions
Column: MonoSelect RP-mAb
Eluent: A)0.08%HCOOH-0.02%TFA-H2O
　　　　B)0.08%HCOOH-0.02%TFA-CH3CN
　　　　A/B=80/20-2.5min-10/90
Flow rate：0.3mL/min
Col.Temp.：60℃
Detection：UV 210nm
Injection Vol.： 1μL

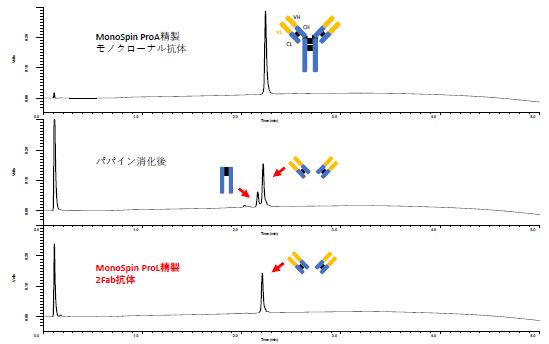

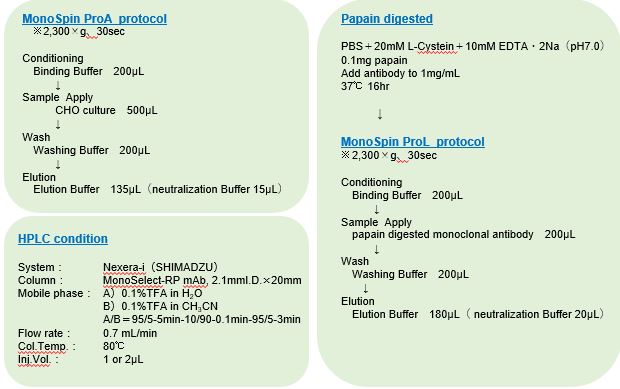

Purification of papain-digested Fab by MonoSpin ProL

Papain digestion for monoclonal antibodies purified from CHO cell culture by MonoSpin ProA separates the monoclonal antibodies into Fab and Fc regions. Then the separated Fab can be recovered and purified by MonoSpin ProL.
