Gas Filters
Click-on Super Clean Gas Filters

3001-18332
A Click-on Super Clean TM Trap is designed to purify carrier gas and offers >99.9999 % purity. As a precaution, we highly recommend installing a moisture trap before hydrocarbon and oxygen traps in every carrier gas line. Spring loaded check valves seal when a filter is removed and open only when a new filter has been locked in place. There is no need for loosening and tightening fittings every time a trap is changed and your system will not become contaminated during the process.
Specifications
Outlet Gas Quality : >99.9999 %
Maximum Pressure : 1 MPa (10 bar)
Maximum Flow : 25 L/min
Dimensions : φ 32 × 200 mm
Weight : 0.6 kg
( Oxygen / Moisture / Hydrocarbon with He purge and indicator : 0.25 kg)
Description | Filter | P/N | Qty. | Cat.No. |
---|---|---|---|---|
Click-on Super Clean | Moisture | CO1001 | 1pc | 3001-18331 |
Click-on Super Clean | Oxygen | CO1002 | 1pc | 3001-18332 |
Click-on Super Clean | Hydrocarbon | CO1003 | 1pc | 3001-18333 |
Click-on Super Clean | Moisture/Oxygen | CO1004 | 1pc | 3001-18334 |
Click-on Super Clean | Moisture/Hydrocarbon | CO1007 | 1pc | 3001-18336 |
Click-on Super Clean | Moisture/Oxygen/Hydrocarbon | CO1005 | 1pc | 3001-18335 |
Click-on Super Clean | Moisture/Oxygen/Hydrocarbon (Purged with Helium) | CO1006 | 1pc | 3001-18338 |

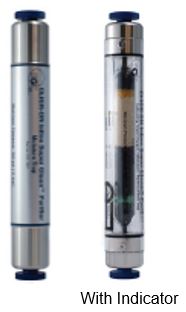

Click-on Super Clean+Indicator | Moisture/Oxygen/Hydrocarbon | CO1051 | 1pc | 3001-18337 |
Description | Remark | P/N | Qty. | Cat.No. |
---|---|---|---|---|
Click-on Connector | Brass 1/4in. | CO2001 | 2pcs | 3001-18339 |
Click-on Connector | SUS 1/4in. | CO2010 | 2pcs | 3001-18341 |
Click-on Connector | Brass 1/8in. | CO2002 | 2pcs | 3001-18340 |
Click-on Connector | SUS 1/8in. | CO2011 | 2pcs | 3001-18342 |
Click-on Connector | SUS Direct Connector | CO2020 | 1pc | 3001-18343 |
Click-on Connector | Wall-mounting Clamp | CO3002 | 4pcs | 3001-18345 |
Brass Reducing Union | SUS SHIMADZU-1/8in.(L30mm, SMM type) | ‐ | 2pcs | 3001-17971 |
O-ring | Fluororesin | CO3001 | 10pairs | 3001-18344 |
