Portable Thermal Desorber HandyTD TD265

Handy TD Portable Thermal Desorber

Specifications

  • Space-Saving Design.
  • High temp ramp-rate.
  • Suitable for every GC systems.
  • User-friendly touchscreen. No PC needed.
  • Wizard function incorporated.
  • Easy sample injection by setting liner loaded with sample-sorbed MonoTrap into the probe.
  • Electronic Pressure and Flow Control (EPFC) installed.

Controller Specifications

Display: 3.5inch touch panel
Modes: RUN, BAKEOUT, EDIT, SETUP
Range of Temp. control: (Ambient temp. +10˚C)-350˚C
Temp ramp rate range: 5˚C to 45˚C/sec (1˚C/sec steps)
Temp. range: Initial: 40-150˚C (1˚C steps)
Hold: Initial Temp. to 350˚C (1˚C steps)
BAKEOUT: 40-350˚C (1˚C steps)
Time-setting range:
Initial:0.0 - 30.0 min (0.1 min steps)
Hold: 0.1 - 5.0 min (0.1 min steps)
BAKEOUT: 1 - 120 min (1 min steps)
Carrier gas: Helium or Nitrogen (selectable)
Diameter of gas pipe: IN: 1/8 inch, OUT: 1/16 inch
Gas control system: Gas control mode:
Initial/BAKEOUT/Cooldown: flow mode
Pre Desorb/Desorb: pressure mode
Max. supply supplied: 800 kPa (116 psi)
Pressure setting range: 10 to 450 kPa (1 kPa steps)
(1.5 to 65.2 psi) (0.1 psi steps)
Flow rate setting range: 5 to 100 mL/min (1 mL/min steps)
Storage of method files: RUN mode: 9; BAKEOUT mode: 1
Size: 133(W) x 275(D) x 222(H) mm
Weight: approx. 4.4 kg
Power: AC100-240 V+/-10% 50/60 Hz

TD Probe Specifications

Heating method: Direct heating
Injection method: Total-volume injection (Split injection in GC)

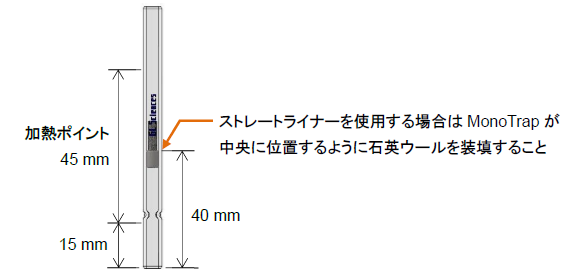

Tube, Liner: Borosilicate glass*
O.D. 6.35 x L 89 +/- 0.5 mm
Needle: SUS316L
O.D. 0.52 x I.D. 0.13 x L 60 mm
Cable length: approx. 1.4 m
Size: O.D. 47 mm (max.) x L 135 mm (Needle excluded)
Weight: approx. 0.7 kg
Power: supplied from controller

*: no metal nor resin liner is usable.

DescriptionManufacturer P/NQty.Cat.No.
Handy TD TD265TD2651pc2702-30001

HandyTD Startup Kit

Includes:
Sorptive Media, MonoTrap RGPS TD x 10
MonoTrap TD Liner for HTD w/Deactivated Wool x 2
TD-Needle x 2
Copper pipe for gas fitting: 1/8 inch x 10 m
Tee joint (Brass) 1/8 inch x 1
SL-type plug (Brass) 1/8 inch x 1
SL-type cap (Brass) 1/8 inch x 1

DescriptionCat.No.
Handy TD TD265 Startup Kit1050-78006

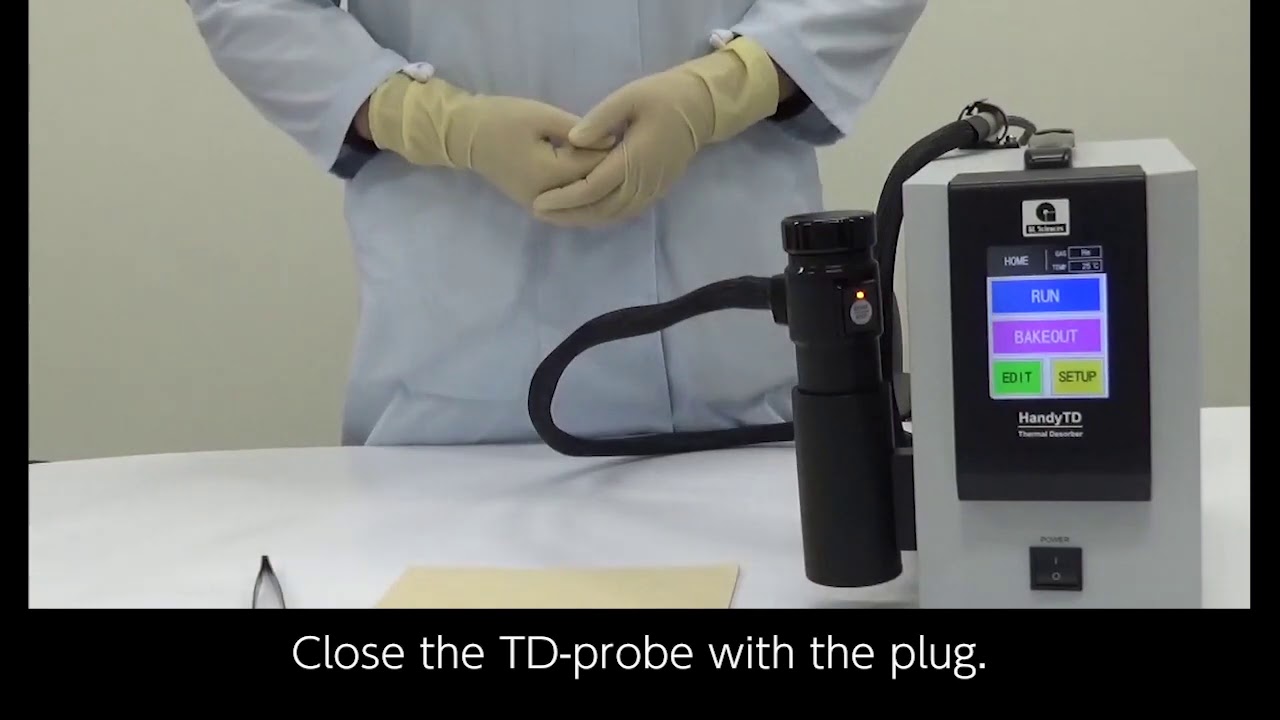

GC sample injections with Handy TD: a revolutionary system
