Air Adsorption Tubes and Sorbents

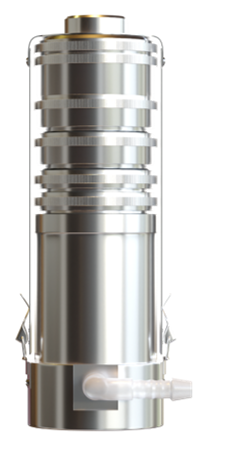

An air sampler called FM4 for per- and polyfluoroalkyl substances (PFAS) was developed for analyzing PFAS in air. PFAS analysis using FM4 is a groundbreaking approach, which enabled the simultaneous collection and analysis of particulate and gaseous PFAS in air.
In conventional collection methods based on filtration, accurate measurement is often difficult because gaseous PFAS may be adsorbed on particles collected on the filter surface. A gaseous PFAS may change to its non-volatile form during sampling.
To solve these limitations, the FM4 was designed with an impactor that minimizes the contact between particles and gas and three types of adsorbents, which enable simultaneous collection of ionic and neutral/volatile PFAS.
The collected PFAS is eluted with organic solvents and quantified by gas chromatography-tandem mass spectrometry (GC-MS/MS) and liquid chromatography-tandem mass spectrometry (LC-MS/MS).
Conventional activated carbons typically contain complicated pores. They have been used as adsorbents for PFAS; however, the complete elution of adsorbed PFAS is difficult to achieve. Therefore, we developed a new functional activated carbon adsorbent (GAIAC), which was used as the gas-type adsorbent. GAIAC is an innovative sorbent that is composed of synthetic resin fiber with optimized pore and surface activity, which enable the collection and elution of PFAS.
Features
・Comprehensive Sampling
Despite its compact size, the FM4 Air Sampler can simultaneously collect both particulate and gaseous substances. It allows the amount of each substance collected to be separately determined, making it possible to comprehensively evaluate the sampled air.
・Capable of Collecting Gaseous PFAS such as FTOHs
Up to now, it has been difficult to collect gaseous PFAS in the air. However, thanks to the FM4 Air Sampler’s newly developed activated-carbon desorption material, this is no longer a problem.
・Excellent Recovery Rate
We have tested the FM4 Air Sampler with a wide range of PFAS and have achieved excellent recovery rates for all of them.
・Portable and Easy to Deploy
Because the FM4 Air Sampler is lightweight and compact, it is easy to carry and, with its very small installation footprint, easy to deploy.

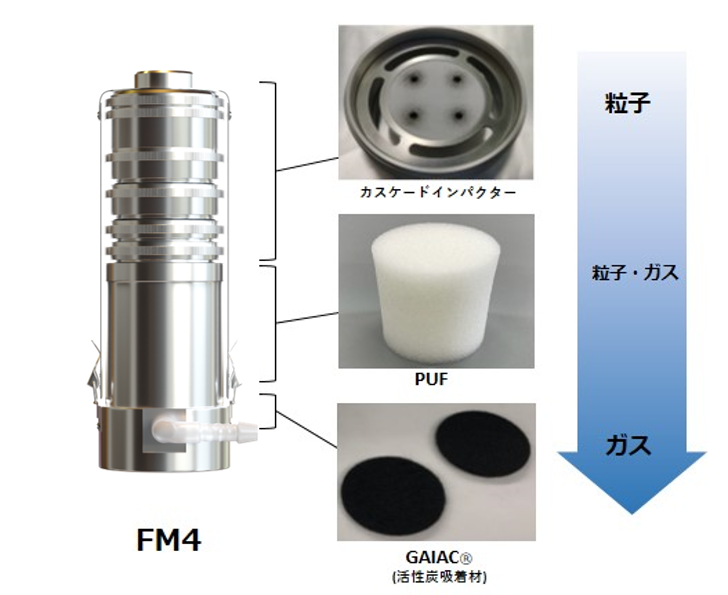

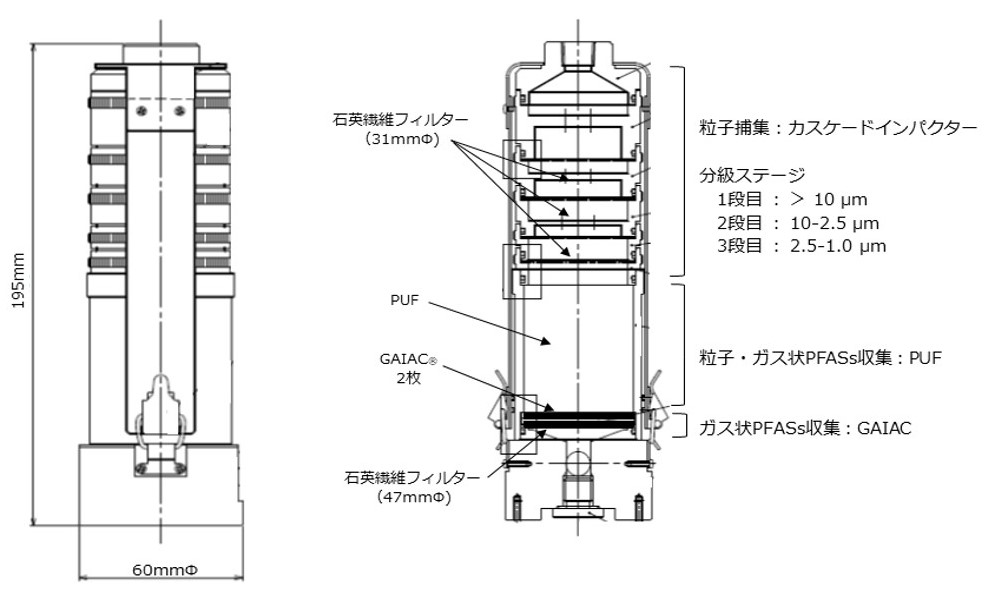

Product Structure

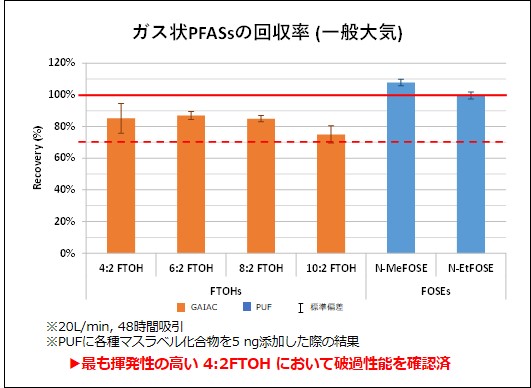

Recovery of Gaseous PFAS (general atmosphere)
Analyses of Neutral (Volatile) PFAS using GC-MS/MS
Specification
Sampler
Description | Material | Dimension | Weight | Connection | Qty. | Cat.No. |
---|---|---|---|---|---|---|
FM4 | Aluminum (anodizing treatment) | Φ60 mm×195 mm | approx. 900 g | Rc 1/4 | 1 set | 1050-13015 |
・ When using it outside, put it in a place rain cannot enter inside.
・ This product does not include a sampling pump.
Consumables
Description | Specification | Number of use per sampling | SDS | Qty. | Cat.No. |
---|---|---|---|---|---|
Quartz Fiber Filter QFF31 | Impactor section, Φ31mm | 3 pcs | 100 pcs | 1050-13022 | |
Quartz Fiber Filter QFF47 | Backup, Φ47 mm | 1 pc | 100 pcs | 1050-13023 | |
Polyurethane Foam PUF4750 | Φ47 mm×50 mm | 1 pc | ENG | 10 pcs | 1050-13021 |
Activated Carbon Fiber Disk (GAIAC FF047) | Φ47 mm×2 mm | 1 pc | ENG | 20 pcs (2/pk × 10pks) | 1050-13020 |
・ This product was developed in a joint effort by National Institute of Advanced Industrial Science and Technology (AIST) and FUTAMURA CHEMICAL CO.,LTD.
・ The specifications of this product are subject to change without notice.
・ GL Sciences is registered trademarks of GL Sciences Inc.
・ GAIAC is a trademark of FUTAMURA CHEMICAL CO.,LTD.
・ All other trademarks are property of their respective owners.
Reference
1. ISO 25101:2009. Water quality. Determination of perfluorooctane sulfonate (PFOS) and perfluorooctanoate (PFOA) — Method for unfiltered samples using solid phase extraction and liquid chromatography/mass spectroscopy.
2. ISO 21675:2019. Water Quality. Determination of Polyfluorinated Alkyl Substances (PFAS) in Water d Method Using Solid Phase Extraction and Liquid Chromatography-Tandem Mass Spectrometry (LC-MS / MS).
3. Yamazaki E.; Taniyasu S.; Wang X.; Yamashita N. Per- and polyfluoroalkyl substances in surface water, gas, and particle in open ocean and coastal environment. Chemosphere. 2021, 272, 129869.
4. Yu, N.; Wen, H.; Wang, X.; Yamazaki, E.; Taniyasu, S.; Yamashita, N.; Yu, H.; Wei S. Non-target discovery of per- and polyfluoroalkyl substances in atmospheric particulate matter and gaseous phase using cryogenic air sampler. Environ. Sci. Technol. 2020, 54 , 3103–3113.
5. Lin H.; Taniyasu S.; Yamazaki E.; Wei S.; Wang X.; Gai N.; Kim J.; Eun H.; Lam P.; Yamashita N. Per- and Polyfluoroalkyl Substances in the Air Particles of Asia: Levels, Seasonality, and Size-dependent Distribution. Environ. Sci. Technol. 2020, 54 , 14182–141191.
6. Takemine S.; Tsurukawa M.; Matsumura C.; Yoshida M.; Yonekubo J.; Oita A.; Okada Y.; Suzuki M.; Eiho J.; Nakano T.; Ezaki T.; Perfluorinated compounds in atmosphere of Hyogo Prefecture, Japan. Organohalogen Compounds. 2010, 72, 1800–1803.
7. Wu R.; Lin H.; Yamazaki E.; Taniyasu S.; Sörengård M.; Ahrens L.; Lam P.; Eun H.; Yamashita N. Simultaneous Analysis of neutral and ionizable per- and poly fluoroalkyl substances in air. Chemosphere. 2021, 280, 130607.
