One-Touch Fittings (Half Unions)

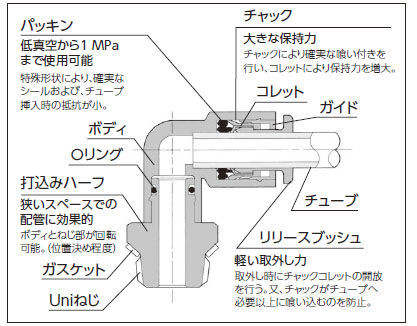

A cross-sectional view of One-Touch Fitting Elbow
Features
- Gasket seal type (Uni Thread) is used for piping drastically reduces piping man-hours to 1/3.
- A ridge shape has been created as a Uni thread for common applications (Rc, G, NPT, NPTF).
Specifications
| Available Tube | FEP, PFA, Nylon, Soft Niylon＊1 |
| Fluid | Air, Water＊2 |
| Operation Pressure Range | -0.1 MPa - 1 MPa |
| Maximum Pressure | 3 MPa |
| Ambient & Fluid Temperature | Air： -5 ºC – 60 ºC Water： 0 ºC – 40 ºC (Not to freeze) |
Parts Material
| Body | C3604, PBT |
| Stud | C3604 (Thread portion) |
| Chuck | SUS304 |
| Guide | SUS304, C3604, PBT |
| Release button | POM |
| Seal, O-Ring | NBR |
| Gasket | SUS304, NBR |
*1: In case of using Soft Nyron, do not use water.
*2: In case of flowing water, do not use under maximum pressure.
*3: In case of flowing water, available temperature is 0 ºC to 40 ºC without freezing.
Do not use the fittings with a leak tester or for vacuum retention.
| Description | Applicable Tubing O.D. | Manufacturer P/N | Screw Standard | Qty. | Cat.No. |
|---|---|---|---|---|---|
| One-Touch Fitting Half Union | 4mm | KQ-4CM2Uni | Uni1/8 | 5pcs | 3006-81415 |
| One-Touch Fitting Half Union | 4mm | KQ-4CM4Uni | Uni1/4 | 5pcs | 3006-81425 |
| One-Touch Fitting Half Union | 6mm | KQ-6CM2Uni | Uni1/8 | 5pcs | 3006-81615 |
| One-Touch Fitting Half Union | 6mm | KQ-6CM4Uni | Uni1/4 | 5pcs | 3006-81625 |
| One-Touch Fitting Half Union | 8mm | KQ-8CM2Uni | Uni1/8 | 5pcs | 3006-81815 |
| One-Touch Fitting Half Union | 8mm | KQ-8CM4Uni | Uni1/4 | 5pcs | 3006-81825 |
| One-Touch Fitting Half Union | 1/8in. | KQ-1/8CM2Uni | Uni1/8 | 5pcs | 3006-81115 |
| One-Touch Fitting Half Union | 1/8in. | KQ-1/8CM4Uni | Uni1/4 | 5pcs | 3006-81125 |
| One-Touch Fitting Half Union | 1/4in. | KQ-1/4CM2Uni | Uni1/8 | 5pcs | 3006-81215 |
| One-Touch Fitting Half Union | 1/4in. | KQ-1/4CM4Uni | Uni1/4 | 5pcs | 3006-81225 |
| One-Touch Fitting Half Union | 4mm | KQ-4CM2 | R1/8 | 5pcs | 3006-82415 |
| One-Touch Fitting Half Union | 4mm | KQ-4CM4 | R1/4 | 5pcs | 3006-82425 |
| One-Touch Fitting Half Union | 6mm | KQ-6CM2 | R1/8 | 5pcs | 3006-82615 |
| One-Touch Fitting Half Union | 6mm | KQ-6CM4 | R1/4 | 5pcs | 3006-82625 |
| One-Touch Fitting Half Union | 8mm | KQ-8CM2 | R1/8 | 5pcs | 3006-82815 |
| One-Touch Fitting Half Union | 8mm | KQ-8CM4 | R1/4 | 5pcs | 3006-82825 |
| One-Touch Fitting Half Union | 1/8in. | KQ-1/8CM2 | R1/8 | 5pcs | 3006-82115 |
| One-Touch Fitting Half Union | 1/8in. | KQ-1/8CM4 | R1/4 | 5pcs | 3006-82125 |
| One-Touch Fitting Half Union | 1/4in. | KQ-1/4CM2 | R1/8 | 5pcs | 3006-82215 |
| One-Touch Fitting Half Union | 1/4in. | KQ-1/4CM4 | R1/4 | 5pcs | 3006-82225 |
| One-Touch Fitting Half Union | 4mm | KQ-4CM2Uni | Uni1/8 | 10pcs | 3006-81419 |
| One-Touch Fitting Half Union | 4mm | KQ-4CM4Uni | Uni1/4 | 10pcs | 3006-81429 |
| One-Touch Fitting Half Union | 6mm | KQ-6CM2Uni | Uni1/8 | 10pcs | 3006-81619 |
| One-Touch Fitting Half Union | 6mm | KQ-6CM4Uni | Uni1/4 | 10pcs | 3006-81629 |
| One-Touch Fitting Half Union | 8mm | KQ-8CM2Uni | Uni1/8 | 10pcs | 3006-81819 |
| One-Touch Fitting Half Union | 8mm | KQ-8CM4Uni | Uni1/4 | 10pcs | 3006-81829 |
| One-Touch Fitting Half Union | 1/8in. | KQ-1/8CM2Uni | Uni1/8 | 10pcs | 3006-81119 |
| One-Touch Fitting Half Union | 1/8in. | KQ-1/8CM4Uni | Uni1/4 | 10pcs | 3006-81129 |
| One-Touch Fitting Half Union | 1/4in. | KQ-1/4CM2Uni | Uni1/8 | 10pcs | 3006-81219 |
| One-Touch Fitting Half Union | 1/4in. | KQ-1/4CM4Uni | Uni1/4 | 10pcs | 3006-81229 |
| One-Touch Fitting Half Union | 4mm | KQ-4CM2 | R1/8 | 10pcs | 3006-82419 |
| One-Touch Fitting Half Union | 4mm | KQ-4CM4 | R1/4 | 10pcs | 3006-82429 |
| One-Touch Fitting Half Union | 6mm | KQ-6CM2 | R1/8 | 10pcs | 3006-82619 |
| One-Touch Fitting Half Union | 6mm | KQ-6CM4 | R1/4 | 10pcs | 3006-82629 |
| One-Touch Fitting Half Union | 8mm | KQ-8CM2 | R1/8 | 10pcs | 3006-82819 |
| One-Touch Fitting Half Union | 8mm | KQ-8CM4 | R1/4 | 10pcs | 3006-82829 |
| One-Touch Fitting Half Union | 1/8in. | KQ-1/8CM2 | R1/8 | 10pcs | 3006-82119 |
| One-Touch Fitting Half Union | 1/8in. | KQ-1/8CM4 | R1/4 | 10pcs | 3006-82129 |
| One-Touch Fitting Half Union | 1/4in. | KQ-1/4CM2 | R1/8 | 10pcs | 3006-82219 |
| One-Touch Fitting Half Union | 1/4in. | KQ-1/4CM4 | R1/4 | 10pcs | 3006-82229 |
