Fittings
One-Touch Fittings (Reducing Unions)

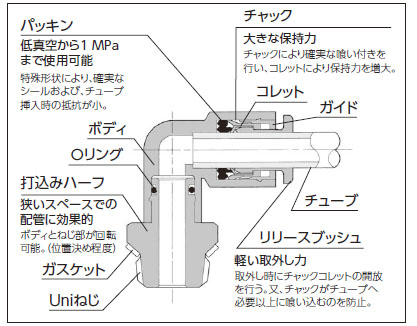

A cross-sectional view of One-Touch Fitting Elbow
Specifications
| Available Tube | FEP, PFA, Nylon, Soft Niylon＊1 |
| Fluid | Air, Water＊2 |
| Operating Pressure Range | -0.1 MPa - 1 MPa |
| Maximum Pressure | 3 MPa |
| Ambient & Fluid Temperature | Air: -5 ºC - 60 ºC Water: 0 ºC - 40 ºC (Not to freeze) |
Parts Material
| Body | C3604, PBT |
| Stud | C3604 (Thread portion) |
| Chuck | SUS304 |
| Guide | SUS304, C3604, PBT |
| Release button | POM |
| Seal, O-Ring | NBR |
| Gasket | SUS304, NBR |
*1: In case of using Soft Nyron, do not use water.
*2: In case of flowing water, do not use under maximum pressure.
*3: In case of flowing water, available temperature is 0 to 40 ºC without freezing.
Do not use the fittings with a leak tester or for vacuum retention.
| Description | Applicable Tubing O.D.1 | Applicable Tubing O.D.2 | Manufacturer P/N | Qty. | Cat.No. |
|---|---|---|---|---|---|
| One-Touch Fitting Reducing Union | 4mm | 6mm | KQ-4RU6 | 5pcs | 3006-84465 |
| One-Touch Fitting Reducing Union | 6mm | 8mm | KQ-6RU8 | 5pcs | 3006-84685 |
| One-Touch Fitting Reducing Union | 8mm | 10mm | KQ-8RU10 | 5pcs | 3006-84805 |
| One-Touch Fitting Reducing Union | 3.2mm | 4mm | KQ-1/8RU4 | 5pcs | 3006-84145 |
| One-Touch Fitting Reducing Union | 1/8in. | 1/4in. | KQ-1/8RU1/4 | 5pcs | 3006-84125 |
| One-Touch Fitting Reducing Union | 1/4in. | 3/8in. | KQ-1/4RU3/8 | 5pcs | 3006-84235 |
| One-Touch Fitting Reducing Union | 4mm | 6mm | KQ-4RU6 | 10pcs | 3006-84469 |
| One-Touch Fitting Reducing Union | 6mm | 8mm | KQ-6RU8 | 10pcs | 3006-84689 |
| One-Touch Fitting Reducing Union | 8mm | 10mm | KQ-8RU10 | 10pcs | 3006-84809 |
| One-Touch Fitting Reducing Union | 3.2mm | 4mm | KQ-1/8RU4 | 10pcs | 3006-84149 |
| One-Touch Fitting Reducing Union | 1/8in. | 1/4in. | KQ-1/8RU1/4 | 10pcs | 3006-84129 |
| One-Touch Fitting Reducing Union | 1/4in. | 3/8in. | KQ-1/4RU3/8 | 10pcs | 3006-84239 |
