One-Touch Fittings (Tees)

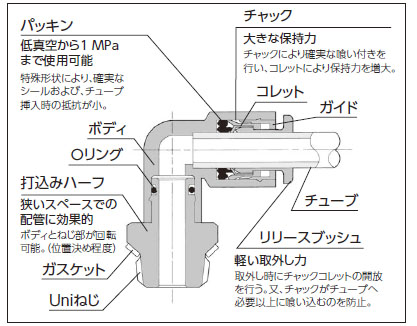

A cross-sectional view of One-Touch Fitting Elbow

Specifications

Available Tube FEP, PFA, Nylon, Soft Niylon ＊1
Fluid Air, Water＊2
Operating Pressure Range -0.1 MPa - 1 MPa
Maximum Pressure 3 MPa
Ambient & Fluid Temperature Air: -5 ºC - 60 ºC
Water: 0 ºC - 40 ºC (Not to freeze)

Parts Material

Body C3604, PBT
Stud C3604 (Thread portion)
Chuck SUS304
Guide SUS304, C3604, PBT
Release button POM
Seal, O-Ring NBR
Gasket SUS304, NBR

*1: In case of using Soft Nyron, do not use water.
*2: In case of flowing water, do not use under maximum pressure.
*3: In case of flowing water, available temperature is 0 to 40 ºC without freezing.
Do not use the fittings with a leak tester or for vacuum retention.

DescriptionApplicable Tubing O.D.
Manufacturer P/NQty.Cat.No.
One-Touch Fitting Tee4mmKQ-4TTT5pcs3006-88445
One-Touch Fitting Tee6mmKQ-6TTT5pcs3006-88665
One-Touch Fitting Tee8mmKQ-8TTT5pcs3006-88885
One-Touch Fitting Tee1/8in.KQ-1/8TTT5pcs3006-88115
One-Touch Fitting Tee1/4in.KQ-1/4TTT5pcs3006-88225
One-Touch Fitting Tee4mmKQ-4TTT10pcs3006-88449
One-Touch Fitting Tee6mmKQ-6TTT10pcs3006-88669
One-Touch Fitting Tee8mmKQ-8TTT10pcs3006-88889
One-Touch Fitting Tee1/8in.KQ-1/8TTT10pcs3006-88119
One-Touch Fitting Tee1/4in.KQ-1/4TTT10pcs3006-88229
