Fittings
One-Touch Fittings (Elbows)

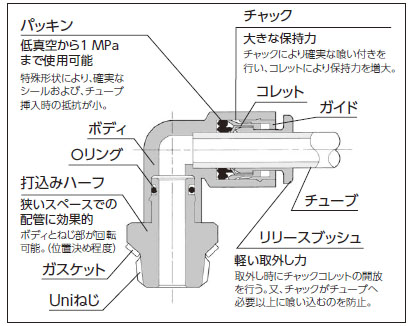

A cross-sectional view of One-Touch Fitting Elbow
Features
- Gasket seal type (Uni screw) is used for pipe screws to reduce the screwing time to 1/3.
- Screw structure (Uni screw) applied to internal screws for various standard pipes (Rc, G, NPT, NPTF).
Specifications
| Available Tube | FEP, PFA, Nylon, Soft Nylon＊1 |
| Fluid | Air, Water＊2 |
| Operating Pressure Range | -0.1 MPa - 1 MPa |
| Maximum Pressure | 3 MPa |
| Ambient & Fluid Temperature | Air: -5 ºC - 60 ºC Water: 0 ºC - 40 ºC (Not to freeze) |
Parts Material
| Body | C3604, PBT |
| Stud | C3604 (Thread portion) |
| Chuck | SUS304 |
| Guide | SUS304, C3604, PBT |
| Release Button | POM |
| Seal, O-Ring | NBR |
| Gasket | SUS304, NBR |
*1: In case of using Soft Nyron, do not use water.
*2: In case of flowing water, do not use under maximum pressure.
*3: In case of flowing water, available temperature is 0 to 40 ºC without freezing.
Do not use the fittings with a leak tester or for vacuum retention.
| Description | Applicable Tubing O.D. | Manufacturer P/N | Screw Standard | Qty. | Cat.No. |
|---|---|---|---|---|---|
| One-Touch Fitting Elbow | 4mm | KQ-4ME2Uni | Uni1/8 | 5pcs | 3006-85415 |
| One-Touch Fitting Elbow | 4mm | KQ-4ME4Uni | Uni1/4 | 5pcs | 3006-85425 |
| One-Touch Fitting Elbow | 6mm | KQ-6ME2Uni | Uni1/8 | 5pcs | 3006-85615 |
| One-Touch Fitting Elbow | 6mm | KQ-6ME4Uni | Uni1/4 | 5pcs | 3006-85625 |
| One-Touch Fitting Elbow | 8mm | KQ-8ME2Uni | Uni1/8 | 5pcs | 3006-85815 |
| One-Touch Fitting Elbow | 8mm | KQ-8ME4Uni | Uni1/4 | 5pcs | 3006-85825 |
| One-Touch Fitting Elbow | 1/8in. | KQ-1/8ME2Uni | Uni1/8 | 5pcs | 3006-85115 |
| One-Touch Fitting Elbow | 1/8in. | KQ-1/8ME4Uni | Uni1/4 | 5pcs | 3006-85125 |
| One-Touch Fitting Elbow | 1/4in. | KQ-1/4ME2Uni | Uni1/8 | 5pcs | 3006-85215 |
| One-Touch Fitting Elbow | 1/4in. | KQ-1/4ME4Uni | Uni1/4 | 5pcs | 3006-85225 |
| One-Touch Fitting Elbow | 4mm | KQ-4ME2 | R1/8 | 5pcs | 3006-86415 |
| One-Touch Fitting Elbow | 4mm | KQ-4ME4 | R1/4 | 5pcs | 3006-86425 |
| One-Touch Fitting Elbow | 6mm | KQ-6ME2 | R1/8 | 5pcs | 3006-86615 |
| One-Touch Fitting Elbow | 6mm | KQ-6ME4 | R1/4 | 5pcs | 3006-86625 |
| One-Touch Fitting Elbow | 8mm | KQ-8ME2 | R1/8 | 5pcs | 3006-86815 |
| One-Touch Fitting Elbow | 8mm | KQ-8ME4 | R1/4 | 5pcs | 3006-86825 |
| One-Touch Fitting Elbow | 4mm | KQ-4ME2Uni | Uni1/8 | 10pcs | 3006-85419 |
| One-Touch Fitting Elbow | 4mm | KQ-4ME4Uni | Uni1/4 | 10pcs | 3006-85429 |
| One-Touch Fitting Elbow | 6mm | KQ-6ME2Uni | Uni1/8 | 10pcs | 3006-85619 |
| One-Touch Fitting Elbow | 6mm | KQ-6ME4Uni | Uni1/4 | 10pcs | 3006-85629 |
| One-Touch Fitting Elbow | 8mm | KQ-8ME2Uni | Uni1/8 | 10pcs | 3006-85819 |
| One-Touch Fitting Elbow | 8mm | KQ-8ME4Uni | Uni1/4 | 10pcs | 3006-85829 |
| One-Touch Fitting Elbow | 1/8in. | KQ-1/8ME2Uni | Uni1/8 | 10pcs | 3006-85119 |
| One-Touch Fitting Elbow | 1/8in. | KQ-1/8ME4Uni | Uni1/4 | 10pcs | 3006-85129 |
| One-Touch Fitting Elbow | 1/4in. | KQ-1/4ME2Uni | Uni1/8 | 10pcs | 3006-85219 |
| One-Touch Fitting Elbow | 1/4in. | KQ-1/4ME4Uni | Uni1/4 | 10pcs | 3006-85229 |
| One-Touch Fitting Elbow | 4mm | KQ-4ME2 | R1/8 | 10pcs | 3006-86419 |
| One-Touch Fitting Elbow | 4mm | KQ-4ME4 | R1/4 | 10pcs | 3006-86429 |
| One-Touch Fitting Elbow | 6mm | KQ-6ME2 | R1/8 | 10pcs | 3006-86619 |
| One-Touch Fitting Elbow | 6mm | KQ-6ME4 | R1/4 | 10pcs | 3006-86629 |
| One-Touch Fitting Elbow | 8mm | KQ-8ME2 | R1/8 | 10pcs | 3006-86819 |
| One-Touch Fitting Elbow | 8mm | KQ-8ME4 | R1/4 | 10pcs | 3006-86829 |
