InertCap Series

InertCap 5MS

*This product's name was changed from InertCap 5MS/NP in April 2023.

InertCap 5MS, in which liquid phase chemically bonded with 5% diphenyl-95% dimethylpolysiloxane, is a low-polarity column designed for GC/MS analysis with top level of inertness and low bleed.

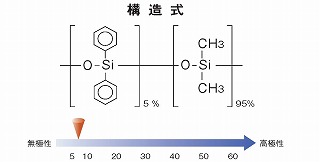

5 % Diphenyl - 95 % Dimethylpolysilarylene

USP Phase G27

Low Polarity

Cross-Linked

Ultra-Low Bleed

Suitable to general analysis, halogen compounds, Phenols, pesticides and FAME analysis

Equivalents : HP-5ms, Rxi-5ms, Equity-5, Rtx-5MS

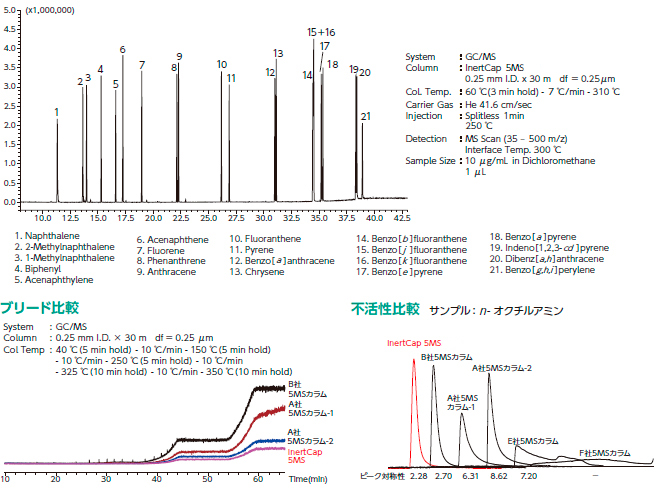

21 PAHs

InertCap 5MS

I.D.	Length	Film Thickness	Max. Temperature	Qty.	Cat.No.
0.18mm	20m	0.18µm	iso.325℃-prog.350℃	1pc	1010-18531
0.25mm	15m	0.1µm	iso.325℃-prog.350℃	1pc	1010-18620
0.25mm	15m	0.25µm	iso.325℃-prog.350℃	1pc	1010-18622
0.25mm	15m	0.5µm	iso.325℃-prog.350℃	1pc	1010-18624
0.25mm	30m	0.1µm	iso.325℃-prog.350℃	1pc	1010-18640
0.25mm	30m	0.25µm	iso.325℃-prog.350℃	1pc	1010-18642
0.25mm	30m	0.5µm	iso.325℃-prog.350℃	1pc	1010-18644
0.25mm	30m	1.0µm	iso.325℃-prog.350℃	1pc	1010-18645
0.25mm	60m	0.1µm	iso.325℃-prog.350℃	1pc	1010-18660
0.25mm	60m	0.25µm	iso.325℃-prog.350℃	1pc	1010-18662
0.32mm	15m	0.1µm	iso.325℃-prog.350℃	1pc	1010-18720
0.32mm	15m	0.25µm	iso.325℃-prog.350℃	1pc	1010-18722
0.32mm	15m	0.5µm	iso.325℃-prog.350℃	1pc	1010-18724
0.32mm	30m	0.1µm	iso.325℃-prog.350℃	1pc	1010-18740
0.32mm	30m	0.25µm	iso.325℃-prog.350℃	1pc	1010-18742
0.32mm	30m	0.5µm	iso.325℃-prog.350℃	1pc	1010-18744
0.32mm	30m	1.0µm	iso.325℃-prog.350℃	1pc	1010-18745
0.32mm	60m	0.1µm	iso.325℃-prog.350℃	1pc	1010-18760
0.32mm	60m	0.25µm	iso.325℃-prog.350℃	1pc	1010-18762

Note) 5 inch cage is available on request.

InertCap 5MS ProGuard

Capillary columns (Built-in Guard Column)

I.D.	Length	Film Thickness	Guard Column Length	Max. Temperature	Qty.	Cat.No.
0.25mm	30m	0.25µm	2ｍ	iso.325℃-prog.350℃	1pc	1010-18941
0.25mm	30m	0.25µm	5ｍ	iso.325℃-prog.350℃	1pc	1010-18942
0.25mm	30m	0.25µm	10ｍ	iso.325℃-prog.350℃	1pc	1010-18943

Note) 5 inch cage is available on request.

InertCap 5MS metabolomics

I.D.	Length	Film Thickness	Max. Temperature	Qty.	Cat.No.
0.25mm	30m	0.25µm	iso.325℃-prog.350℃	1pc	1010-18952

InertCap 5MS metabolomics with Guard Column

I.D.	Length	Film Thickness	Guard Column Length	Max. Temperature	Qty.	Cat.No.
0.18mm	30m	0.18µm	5m	iso.325℃-prog.350℃	1pc	1010-18951
