InertCap Series

InertCap 1HT

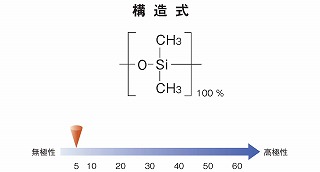

InertCap 1HT is a non-polar high-temperature column bonded 100% dimethlypolysiloxane. Compounds elute in order of increasing boiling point. InertCap 1HT is specially processed for operation up to 400 °C with a high temperature polyimide coated fused silica tubing.

  • 100 % Dimethylpolysiloxane
  • USP Phase G2
  • Non-Polarity
  • Cross-Linked
  • Maximum temperature is 400 ℃
  • Suitable for general analysis, hydrocarbon, components with high boiling points and phenol analysis
  • Equivalents: DB-1HT, Rxi-1HT, ZB-1HT

InertCap 1HT

I.D.
Length
Film Thickness
Max. TemperatureQty.Cat.No.
0.25mm15m0.10µmprog.400℃1pc1010-90901
0.25mm30m0.10µmprog.400℃1pc1010-01140
0.25mm30m0.25µmprog.400℃1pc1010-01142
0.32mm15m0.10µmprog.400℃1pc1010-01220
0.32mm5m0.25µmprog.400℃1pc1010-90905
0.32mm15m0.25µmprog.400℃1pc1010-90906
0.32mm30m0.10µmprog.400℃1pc1010-01240
0.32mm30m0.25µmprog.400℃1pc1010-90904

Note) 5 inch cage is available on request.

Capillary columns (Built-in Guard Column)

InertCap 1HT ProGuard

I.D.
Length
Film Thickness
Max. TemperatureQty.Cat.No.
0.25mm30m0.25µmprog.400℃1pc1010-90902
0.32mm30m0.25µmprog.400℃1pc1010-90907

Note) 5 inch basket is available on request.
