InertCap Series

InertCap Pure-WAX

InertCap Pure-WAX is a high polar column bonded polyethylene glycol. Based on newly developed inner treatment technology, InertCap Pure-WAX achieves the highest inertness among the market available columns. InertCap Pure-WAX is an optimal column for analyses of acidic compounds and basic compounds that commercially available WAX columns were not capable of analyzing.

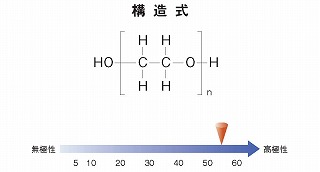

Polyethylene Glycol (PEG)
USP Phase G16
High Polarity
Cross-Linked
Suitable for general analysis, esters, flavors, alcohols, aromatics and FAME analysis
Equivalents : DB-WAX, HP-INNOWax, Rtx-Wax, Stabilwax

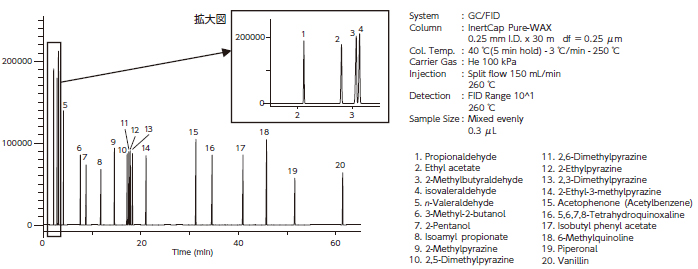

Flavor

Inertcap Pure-WAX

I.D.	Length	Film Thickness	Max. Temperature	Qty.	Cat.No.
0.18mm	20m	0.18µm	iso.260℃-prog.260℃	1pc	1010-68031
0.18mm	40m	0.18µm	iso.260℃-prog.260℃	1pc	1010-68051
0.25mm	30m	0.25µm	iso.260℃-prog.260℃	1pc	1010-68142
0.25mm	30m	0.50µm	iso.260℃-prog.260℃	1pc	1010-68144
0.25mm	60m	0.25µm	iso.260℃-prog.260℃	1pc	1010-68162
0.25mm	60m	0.5µm	iso.260℃-prog.260℃	1pc	1010-68164
0.32mm	30m	0.25µm	iso.260℃-prog.260℃	1pc	1010-68242
0.32mm	30m	0.50µm	iso.260℃-prog.260℃	1pc	1010-68244
0.32mm	60m	0.25µm	iso.260℃-prog.260℃	1pc	1010-68262
0.32mm	60m	0.50µm	iso.260℃-prog.260℃	1pc	1010-68264
0.53mm	15m	1.00µm	iso.240℃-prog.240℃	1pc	1010-68425
0.53mm	30m	1.00µm	iso.240℃-prog.240℃	1pc	1010-68445
0.53mm	60m	1.00µm	iso.240℃-prog.240℃	1pc	1010-68465

Note) 5 inch cage is available on request.

InertCap Pure-WAX ProGuard

Capillary columns (Built-in Guard Column)

I.D.	Length	Film Thickness	Guard Column Length	Max. Temperature	Qty.	Cat.No.
0.25mm	30m	0.25µm	2ｍ	iso.260℃-prog.260℃	1pc	1010-68490
0.25mm	30m	0.25µm	5ｍ	iso.260℃-prog.260℃	1pc	1010-68491
0.25mm	30m	0.25µm	10ｍ	iso.260℃-prog.260℃	1pc	1010-68494

Note) 5 inch cage is available on request.

InertCap Pure-WAX T.L

Capillary columns (Built-in Transfer Line)

I.D.	Length	Film Thickness	Transfer Line Length	Max. Temperature	Qty.	Cat.No.
0.25mm	30m	0.25µm	2ｍ	iso.260℃-prog.260℃	1pc	1010-68492
0.25mm	60m	0.25µm	2ｍ	iso.260℃-prog.260℃	1pc	1010-68493

Note) 5 inch cage is available on request.
