InertCap Series
InertCap 225
InertCap 225 is a medium polar column bonded 50 % cyanopropylmethyl and 50 % phenylmethylpolysiloxane. Cyano group in the stationary phase includes triple bond and retains compounds stronger in accordance with the increase of the number of unsaturated bond by their dipole/dipole interactions. For that reason InertCap 225 shows high separation efficiency for analyses of geometrical isomers.

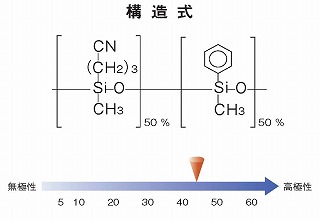

- 50 % Cyanopropylmethyl - 50 % Phenylmethylpolysiloxane
- USP Phase G19
- Medium - High Polarity
- Cross-Linked
- Excellent Separation for FAME
- Equivalents : DB-225, HP-225, Rtx-225, CP-Sil 43CB
FAME (Fatty Acid Methyl Esters)
InertCap 225
| I.D. | Length | Film Thickness | Max. Temperature | Qty. | Cat.No. |
|---|---|---|---|---|---|
| 0.25mm | 30m | 0.25µm | iso.220℃-prog.240℃ | 1pc | 1010-66642 |
| 0.32mm | 30m | 0.25µm | iso.220℃-prog.240℃ | 1pc | 1010-66742 |
| 0.53mm | 30m | 0.50µm | iso.220℃-prog.240℃ | 1pc | 1010-66844 |
Note) 5 inch cage is available on request.
Custom made sizes are available on request.
