InertCap Series

InertCap WAX-HT

InertCap WAX-HT is a strong polar column bonded polyethylene glycol. By increasing the heat resistance of stationary phase, InertCap WAX-HT achieve the practical use of the maximum temperature 280 °C. Being optimal for the analyses of polar samples such as solvents, InertCap WAX-HT can be also available for the analyses of high-boiling compounds.

inertcapの画像

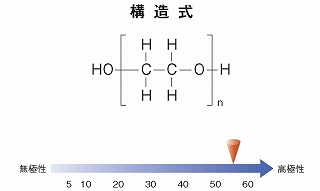

  • Polyethylene Glycol(PEG)
  • USP Phase G16
  • High Polarity
  • Cross-Linked
  • Suitable for general analysis, esters, flavors, alcohols, aromatics and FAME analysis
  • Equivalents : DB-WAXetr, SolGel-WAX

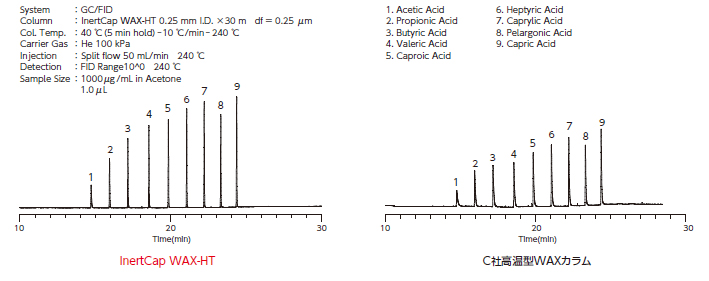

Short-chain Fatty Acids

低級脂肪酸 分析比較の画像

Inertcap WAX-HT

I.D.LengthFilm ThicknessMax. TemperatureQty.Cat.No.
0.25mm30m0.25µmiso.270℃-prog.280℃1pc1010-68542
0.25mm30m0.50µmiso.260℃-prog.270℃1pc1010-68544
0.25mm60m0.25µmiso.270℃-prog.280℃1pc1010-68562
0.25mm60m0.50µmiso.260℃-prog.270℃1pc1010-68564
0.32mm30m0.25µmiso.270℃-prog.280℃1pc1010-68642
0.32mm30m0.50µmiso.260℃-prog.270℃1pc1010-68644
0.32mm60m0.25µmiso.270℃-prog.280℃1pc1010-68662
0.32mm60m0.50µmiso.260℃-prog.270℃1pc1010-68664
0.53mm15m1.00µmiso.250℃-prog.260℃1pc1010-68725
0.53mm30m1.00µmiso.250℃-prog.260℃1pc1010-68745
0.53mm60m1.00µmiso.250℃-prog.260℃1pc1010-68765

Note) 5 inch basket is available on request.
