Products

InertCap Series

InertCap 1MS

InertCap 1MS is a non-polar column bonded 100 % Dimethylpolysiloxane. Samples elute in order of low boiling points. Designed for GC/MS, InertCap 1MS realizes the world highest inertness and ultra-low bleed.

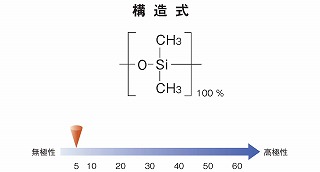

構造式の画像
  • 100 % Dimethylpolysiloxane
  • USP Phase G2
  • Non-Polarity
  • Cross-Linked
  • Ultra-Low Bleed
  • Suitable for general analysis, hydrocarbon, components with high boiling points, PCBs and phenol analysis
  • Equivalents: DB-1ms, HP-1ms, Rxi-1ms, VF-1ms, Equity-1

Automobile Interior Material Analysis

自動車内装材 分析例の画像

InertCap 1MS

I.D.
Length
Film Thickness
Max. TemperatureQty.Cat.No.
0.18mm20m0.18µmiso.325℃-prog.350℃1pc1010-12031
0.25mm15m0.25µmiso.325℃-prog.350℃1pc1010-12122
0.25mm30m0.1µmiso.325℃-prog.350℃1pc1010-12140
0.25mm30m0.25µmiso.325℃-prog.350℃1pc1010-12142
0.25mm30m1.0µmiso.300℃-prog.320℃1pc1010-12145
0.25mm60m0.25µmiso.325℃-prog.350℃1pc1010-12162
0.25mm60m1.0µmiso.300℃-prog.320℃1pc1010-12165
0.32mm15m0.25µmiso.325℃-prog.350℃1pc1010-12222
0.32mm30m0.25µmiso.325℃-prog.350℃1pc1010-12242
0.32mm30m1.0µmiso.300℃-prog.320℃1pc1010-12245
0.32mm60m0.25µmiso.325℃-prog.350℃1pc1010-12262
0.32mm60m1.0µmiso.300℃-prog.320℃1pc1010-12265

Note) 5 inch basket is available on request.

InertCap 1MS ProGuard

Capillary columns (Built-in Guard Column)

I.D.LengthFilm ThicknessGuard Column LengthMax. TemperatureQty.Cat.No.
0.25mm30m0.25µm2miso.325℃-prog.350℃1pc1010-12172
0.25mm30m0.25µm5miso.325℃-prog.350℃1pc1010-12173
0.25mm30m0.25µm10miso.325℃-prog.350℃1pc1010-12174

Note) 5 inch basket is available on request.

InertCap 1MS T.L.

Capillary columns (Built-in Transfer Line)

I.D.LengthFilm ThicknessTransfer Line LengthMax. TemperatureQty.Cat.No.
0.25mm30m0.25µm2miso.325℃-prog.350℃1pc1010-12192

Note) 5 inch basket is available on request.
