InertCap series

InertCap 624

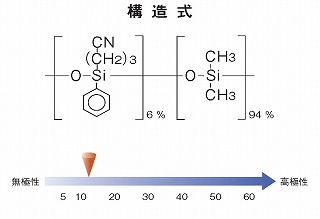

InertCap 624 is a medium polar column bonded 6 % cyanopropylphenyl and 94 % dimethylpolysiloxane designed for VOC analysis. InertCap 624 is optimal for the analysis of “acetaldehyde and methanol in ethanol” defined in the Japanese Pharmacopeia Fifteenth Edition.

InertCapの画像
  • 6 % Cyanopropylphenyl - 94 % Dimethylpolysiloxane
  • USP Phase G43
  • Medium Polarity
  • Cross-Linked
  • Suitable for VOCs and alcohol analysis
  • Equivalents : DB-624, HP-VOC, Rtx-624, VF-624ms

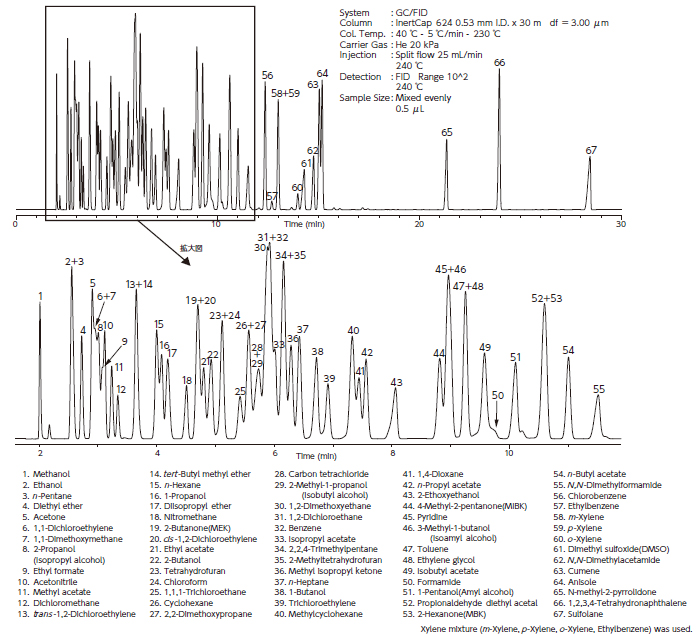

Residual Solvents in Pharmaceuticals

医療品残留溶媒 分析例の画像

Inertcap 624

I.D.LengthFilm ThicknessMax. TemperatureQty.Cat.No.
0.18mm20m1.0µmiso.260℃-prog.260℃1pc1010-14535
0.18mm40m1.0µmiso.260℃-prog.260℃1pc1010-14555
0.25mm30m1.4µmiso.260℃-prog.260℃1pc1010-14646
0.25mm60m1.4µmiso.260℃-prog.260℃1pc1010-14666
0.32mm30m1.8µmiso.260℃-prog.260℃1pc1010-14747
0.32mm30m3.0µmiso.260℃-prog.260℃1pc1010-14748
0.32mm60m1.8µmiso.260℃-prog.260℃1pc1010-14767
0.53mm30m3.0µmiso.260℃-prog.260℃1pc1010-14948
0.53mm75m3.0µmiso.260℃-prog.260℃1pc1010-14978

Note) 5 inch basket is available on request.
