Micro Splitter Valve

Micro Splitter Valve

Micro Splitter Valve is simple splitter for performing applications with micro flow area using widely used analytical system. After determining the split ratio according to the inner diameter and length of piping connected to each port, fine adjustment is performed with the flow adjustment knob.

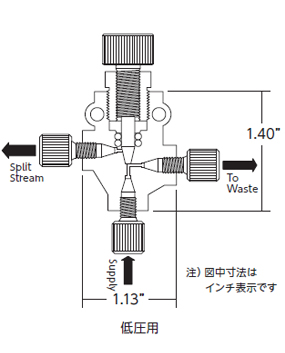

ミクロスプリッターバルブの図

For Low Volume

Features

  • Metal Free Type

Specifications

Operating Pressure 5.4 MPa (54 bar)
Minimum Flow Volume 2 µL/min (1 mL/min when pumping)
Inner Volume 1.2 µL - 2.8 µL
Connection 1/16 inch O.D. tubing (including PEEK nuts)

DescriptionQty.Cat.No.
Micro Splitter Valve for Low Pressure1pc6010-96500
Discontinued

For High Pressure

Features

  • High Pressure Resistance

Specifications

Max. Operating Pressure 27.4 MPa (274 bar)
Minimum Flow Volume 4.8 µL/min (1 mL/ min when pumping)
Inner Volume 1.2 - 2.8 µL
Connection 1/16 inch O.D. tubing (including PEEK nuts)

DescriptionQty.Cat.No.
Micro Splitter Valve for High Pressure1pc6010-96510
Discontinued

For High Pressure (with scale)

Features

  • High Pressure Resistance
  • With the scale on the flow adjustment knob, flow volume is able to be set repeatedly.

Specifications

Max. Operating Pressure 27.4 MPa (274 bar)
Minimum Flow Volume 4.8 µL/min (1 mL/min when pumping)
Inner Volume 1.2 - 2.8 µL
Connection 1/16 inch O.D. tubing (with PEEK nuts)

DescriptionQty.Cat.No.
Micro Splitter Valve for High Pressure with Measure1pc6010-96520
