Ultra Sealed Pre-column Filters

Ultra sealed pre-column filters have high tolerance on backpressure to 103.4 MPa (1034 bar). Inside there is a sutainless steel filter, chose one from 0.5 µm or 2 µm filter diameter. It is changeable for Waters and Parker type fittings.

Specification

Thread:   10-32UNF
Max. Operating Pressure:  103.4MPa (1034bar)
Inner Volume: 1μL (Filter diameter 0.5μm)
                              1.17μL (Filter diameter 2μm)		 Filter Material: SS
Fitting Materials: SS (nut); PEEK (ferrule)


Filter Diameter

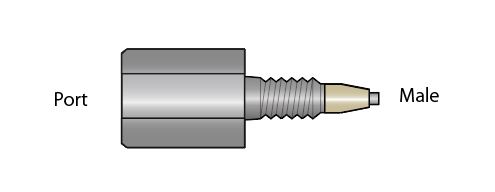

Compatibility (Port-Male)Material
Qty.Cat.No.
0.5µmParker Type - Parker TypeTitanium1pc6010-55500
0.5µmParker Type - Parker TypeTitanium10pcs6010-55505
0.5µmParker Type - Parker TypeStainless Steel1pc6010-55511
0.5µmParker Type - Waters TypeStainless Steel1pc6010-55521
0.5µmWaters Type - Parker TypeStainless Steel1pc6010-55531
0.5µmWaters Type - Waters TypeStainless Steel1pc6010-55541
2µmParker Type - Parker TypeStainless Steel1pc6010-55551
2µmParker Type - Waters TypeStainless Steel1pc6010-55561
2µmWaters Type - Parker TypeStainless Steel1pc6010-55571
2µmWaters Type - Waters TypeStainless Steel1pc6010-55581
