InertSustain PFP Packed Guard Columns

InertSustain PFP columns are bonded with Pentafluorophenyl groups to our newly developed ES silica gel, which delivers unique separation patterns with excellent peak shape and sensitivity. The chromatographic difference stems from the fact that the PFP phases provide interactions such as π-π, dipole, hydrogen bonding, and ionic interactions unlike conventional PFP columns.

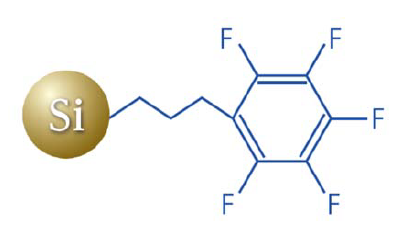

化学結合基の画像

Functional Group

Base Material : High Purity ES Silica Gel
Functional Group : Pentafluorophenyl
Particle Size : 3 µm, 5 µm
Surface Area : 350 m2/g
Pore Size : 100 Å (10 nm)
Pore Volume : 0.85 mL/g
End-capping : Yes
Carbon Loading : 10.0 %
USP Code : L43
pH Range : 2 - 7.5

InertSustain PFP Packed Guard Columns

Particle Size
I.D.
Length
Applicable Column's I.D.
SDSQty.Cat.No.
3µm1.0mm33mm1.0mmENG1pc5020-87883
3µm1.0mm50mm1.0mmENG1pc5020-87881
3µm1.5mm33mm1.5mmENG1pc5020-87882
3µm1.5mm50mm1.5mmENG1pc5020-87880
3µm2.1mm33mm2.1mmENG1pc5020-87867
3µm2.1mm50mm2.1mmENG1pc5020-87862
3µm3.0mm33mm3.0mmENG1pc5020-87866
3µm3.0mm50mm3.0mmENG1pc5020-87861
3µm4.0mm10mm4.0mmENG1pc5020-87863
3µm4.0mm33mm4.0mmENG1pc5020-87865
3µm4.0mm50mm4.0mmENG1pc5020-87860
3µm4.6mm33mm4.6mmENG1pc5020-87864
3µm4.6mm50mm4.6mmENG1pc5020-87859
5µm1.0mm33mm1.0mmENG1pc5020-87756
5µm1.0mm50mm1.0mmENG1pc5020-87754
5µm1.5mm33mm1.5mmENG1pc5020-87755
5µm1.5mm50mm1.5mmENG1pc5020-87753
5µm2.1mm33mm2.1mmENG1pc5020-87740
5µm2.1mm50mm2.1mmENG1pc5020-87735
5µm3.0mm33mm3.0mmENG1pc5020-87739
5µm3.0mm50mm3.0mmENG1pc5020-87734
5µm4.0mm10mm4.0mmENG1pc5020-87736
5µm4.0mm33mm4.0mmENG1pc5020-87738
5µm4.0mm50mm4.0mmENG1pc5020-87733
5µm4.6mm33mm4.6mmENG1pc5020-87737
5µm4.6mm50mm4.6mmENG1pc5020-87732
