InertCore

InertCore Biphenyl

Catalog

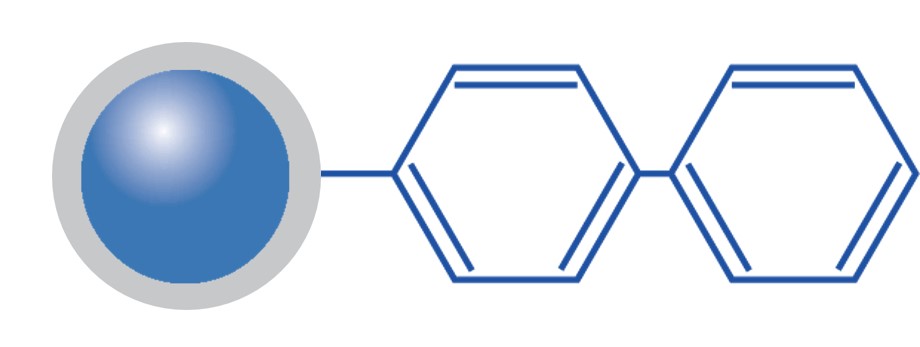

InertCore Biphenyl is designed to deliver superior selectivity for aromatic compounds through π-π interactions, similar to phenyl columns. The presence of two benzene rings in its functional group enhances hydrophobic interactions, providing both strong retention and excellent selectivity.

Specification

Base Material	: Core-shell type silica gel	Functional Group	: Biphenyl
Particle Size	: 2.6µm	End-capping	: Yes
Solid Core	: 2.0µm	Carbon Loading	: 10%
Surface Area	: 200m²/g	USP Code	: L11
Pore Size	: 90Å	pH Range	: 1.5 - 8.5
		Max Pressure	: 100MPa (2.1 mm I.D.) 60 MPa (3.0 mm I.D., 4.6 mm I.D.)

*Value calculated for the porous layer only (core excluded).

InertCore biphenyl Analytical Column

Description	Particle Size	I.D.	Length	Qty.	Cat.No.
InertCore Biphenyl Analytical Column	2.6µm	2.1mm	50mm	1pc	5020-17527
InertCore Biphenyl Analytical Column	2.6µm	2.1mm	75mm	1pc	5020-17528
InertCore Biphenyl Analytical Column	2.6µm	2.1mm	100mm	1pc	5020-17529
InertCore Biphenyl Analytical Column	2.6µm	2.1mm	150mm	1pc	5020-17530
InertCore Biphenyl Analytical Column	2.6µm	3.0mm	50mm	1pc	5020-17531
InertCore Biphenyl Analytical Column	2.6µm	3.0mm	75mm	1pc	5020-17532
InertCore Biphenyl Analytical Column	2.6µm	3.0mm	100mm	1pc	5020-17533
InertCore Biphenyl Analytical Column	2.6µm	3.0mm	150mm	1pc	5020-17534
InertCore Biphenyl Analytical Column	2.6µm	4.6mm	50mm	1pc	5020-17535
InertCore Biphenyl Analytical Column	2.6µm	4.6mm	75mm	1pc	5020-17536
InertCore Biphenyl Analytical Column	2.6µm	4.6mm	100mm	1pc	5020-17537
InertCore Biphenyl Analytical Column	2.6µm	4.6mm	150mm	1pc	5020-17538

Note) The type of fitting connections used is Parker type (UP type).

InertCore biphenyl Guard Column

Description	Particle Size	I.D.	Length	Qty.	Cat.No.
InertCore Biphenyl Guard Column	2.6µm	2.1mm	20mm	1pc	5020-17524
InertCore Biphenyl Guard Column	2.6µm	3.0mm	20mm	1pc	5020-17525
InertCore Biphenyl Guard Column	2.6µm	4.6mm	20mm	1pc	5020-17526

Note) The type of fitting connections used is Parker type (UP type).
