Metal-Free PEEK Columns

Metal-Free PEEK Columns

UHPLC-PEEK Columns (Particle size under 3 µm)

Generally, conventional PEEK hardware is tolerable up to a back pressure of 20 MPa. The mechanical strength of PEEK is far less than stainless steel and the durability to be very low as well. As illustrated on the right, the introduction of a radically new Steel-Coated-PEEK hardware offer maximum operating pressure of 80 MPa for sub-2 μm columns achieving rapid analysis for analytes sensitive to frequently used stainless steel columns

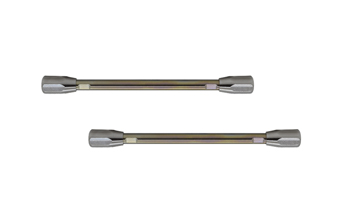

高耐圧UHPLC-PEEKカラムの画像
高耐圧UHPLC-PEEKカラムの図
Material Wetted Part・・PEEK
Outer Part・・ Stainless Steel
Particel Sizes 1.9 µm, 2 µm, 3 µm
Max. Operating Pressure 80 MPa (1.9 µm, 2 µm), 50 MPa (3 µm)

PEEK Columns (particle size: 5 um)

Not only the hardware, but the frits are also made from PEEK, which the sample contacts only PEEK.

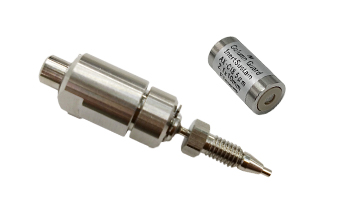

PEEKカラムの画像
PEEKカラムの図

Specification

Material PEEK
Particle Sizes 5 µm
Max.Operating Pressure 20 MPa (200 bar)

InertSustainC18 Non-metal Columns

DescriptionParticle Size
I.D.
Length
Qty.Cat.No.
UHPLC PEEK Column2μm4.6mm50mm1pc5020-87403
UHPLC PEEK Column2μm4.6mm100mm1pc5020-87404
UHPLC PEEK Column2μm4.6mm150mm1pc5020-87405
UHPLC PEEK Column2μm2.1mm50mm1pc5020-87400
UHPLC PEEK Column2μm2.1mm100mm1pc5020-87401
UHPLC PEEK Column2μm2.1mm150mm1pc5020-87402
UHPLC PEEK Column3μm4.6mm50mm1pc5020-87416
UHPLC PEEK Column3μm4.6mm100mm1pc5020-87417
UHPLC PEEK Column3μm4.6mm150mm1pc5020-87418
UHPLC PEEK Column3μm4.6mm250mm1pc5020-87419
UHPLC PEEK Column3μm2.1mm50mm1pc5020-87412
UHPLC PEEK Column3μm2.1mm100mm1pc5020-87413
UHPLC PEEK Column3μm2.1mm150mm1pc5020-87414
UHPLC PEEK Column3μm2.1mm250mm1pc5020-87415
PEEK Column5μm4.6mm50mm1pc5020-87472
PEEK Column5μm4.6mm100mm1pc5020-87473
PEEK Column5μm4.6mm150mm1pc5020-87474
PEEK Column5μm4.6mm250mm1pc5020-87475
PEEK Column5μm2.1mm50mm1pc5020-87468
PEEK Column5μm2.1mm100mm1pc5020-87469
PEEK Column5μm2.1mm150mm1pc5020-87470
PEEK Column5μm2.1mm250mm1pc5020-87471

InertSustainAQ-C18 Non-metal Columns

DescriptionParticle Size
I.D.
Length
Qty.Cat.No.
UHPLC PEEK Column1.9μm4.6mm50mm1pc5020-87065
UHPLC PEEK Column1.9μm4.6mm100mm1pc5020-87066
UHPLC PEEK Column1.9μm4.6mm150mm1pc5020-87067
UHPLC PEEK Column1.9μm2.1mm50mm1pc5020-87068
UHPLC PEEK Column1.9μm2.1mm100mm1pc5020-87069
UHPLC PEEK Column1.9μm2.1mm150mm1pc5020-87070
UHPLC PEEK Column3μm4.6mm50mm1pc5020-87057
UHPLC PEEK Column3μm4.6mm100mm1pc5020-87058
UHPLC PEEK Column3μm4.6mm150mm1pc5020-87059
UHPLC PEEK Column3μm4.6mm250mm1pc5020-87060
UHPLC PEEK Column3μm2.1mm50mm1pc5020-87061
UHPLC PEEK Column3μm2.1mm100mm1pc5020-87062
UHPLC PEEK Column3μm2.1mm150mm1pc5020-87063
UHPLC PEEK Column3μm2.1mm250mm1pc5020-87064
PEEK Column5μm4.6mm50mm1pc5020-87049
PEEK Column5μm4.6mm100mm1pc5020-87050
PEEK Column5μm4.6mm150mm1pc5020-87051
PEEK Column5μm4.6mm250mm1pc5020-87052
PEEK Column5μm2.1mm50mm1pc5020-87053
PEEK Column5μm2.1mm100mm1pc5020-87054
PEEK Column5μm2.1mm150mm1pc5020-87055
PEEK Column5μm2.1mm250mm1pc5020-87056

InertSustainSwiftC18 Non-metal Columns

DescriptionParticle Size
I.D.
Length
Qty.Cat.No.
UHPLC PEEK Column1.9µm2.1mm50mm1pc5020-87548
UHPLC PEEK Column1.9µm2.1mm100mm1pc5020-87549
UHPLC PEEK Column1.9µm2.1mm150mm1pc5020-87550
UHPLC PEEK Column1.9µm4.6mm50mm1pc5020-87551
UHPLC PEEK Column1.9µm4.6mm100mm1pc5020-87552
UHPLC PEEK Column1.9µm4.6mm150mm1pc5020-87553
UHPLC PEEK Column3µm2.1mm50mm1pc5020-87554
UHPLC PEEK Column3µm2.1mm100mm1pc5020-87555
UHPLC PEEK Column3µm2.1mm150mm1pc5020-87556
UHPLC PEEK Column3µm2.1mm250mm1pc5020-87557
UHPLC PEEK Column3µm4.6mm50mm1pc5020-87558
UHPLC PEEK Column3µm4.6mm100mm1pc5020-87559
UHPLC PEEK Column3µm4.6mm150mm1pc5020-87560
UHPLC PEEK Column3µm4.6mm250mm1pc5020-87561
PEEK Column5µm2.1mm50mm1pc5020-87562
PEEK Column5µm2.1mm100mm1pc5020-87563
PEEK Column5µm2.1mm150mm1pc5020-87564
PEEK Column5µm2.1mm250mm1pc5020-87565
PEEK Column5µm4.6mm50mm1pc5020-87566
PEEK Column5µm4.6mm100mm1pc5020-87567
PEEK Column5µm4.6mm150mm1pc5020-87568
PEEK Column5µm4.6mm250mm1pc5020-87569

InertsilODS-HL Non-metal Columns

DescriptionParticle Size
I.D.
Length
Qty.Cat.No.
UHPLC PEEK Column3μm4.6mm50mm1pc5020-87536
UHPLC PEEK Column3μm4.6mm100mm1pc5020-87537
UHPLC PEEK Column3μm4.6mm150mm1pc5020-87538
UHPLC PEEK Column3μm4.6mm250mm1pc5020-87539
UHPLC PEEK Column3μm2.1mm50mm1pc5020-87532
UHPLC PEEK Column3μm2.1mm100mm1pc5020-87533
UHPLC PEEK Column3μm2.1mm150mm1pc5020-87534
UHPLC PEEK Column3μm2.1mm250mm1pc5020-87535
PEEK Column5μm4.6mm50mm1pc5020-87544
PEEK Column5μm4.6mm100mm1pc5020-87545
PEEK Column5μm4.6mm150mm1pc5020-87546
PEEK Column5μm4.6mm250mm1pc5020-87547
PEEK Column5μm2.1mm50mm1pc5020-87540
PEEK Column5μm2.1mm100mm1pc5020-87541
PEEK Column5μm2.1mm150mm1pc5020-87542
PEEK Column5μm2.1mm250mm1pc5020-87543

InertsilODS-4 Non-metal Columns

DescriptionParticle Size
I.D.
Length
Qty.Cat.No.
UHPLC PEEK Column3μm4.6mm50mm1pc5020-87456
UHPLC PEEK Column3μm4.6mm100mm1pc5020-87457
UHPLC PEEK Column3μm4.6mm150mm1pc5020-87458
UHPLC PEEK Column3μm4.6mm250mm1pc5020-87459
UHPLC PEEK Column3μm2.1mm50mm1pc5020-87452
UHPLC PEEK Column3μm2.1mm100mm1pc5020-87453
UHPLC PEEK Column3μm2.1mm150mm1pc5020-87454
UHPLC PEEK Column3μm2.1mm250mm1pc5020-87455
PEEK Column5μm4.6mm50mm1pc5020-87512
PEEK Column5μm4.6mm100mm1pc5020-87513
PEEK Column5μm4.6mm150mm1pc5020-87514
PEEK Column5μm4.6mm250mm1pc5020-87515
PEEK Column5μm2.1mm50mm1pc5020-87508
PEEK Column5μm2.1mm100mm1pc5020-87509
PEEK Column5μm2.1mm150mm1pc5020-87510
PEEK Column5μm2.1mm250mm1pc5020-87511

InertsilODS-3 Non-metal Columns

DescriptionParticle Size
I.D.
Length
Qty.Cat.No.
UHPLC PEEK Column3μm4.6mm50mm1pc5020-87448
UHPLC PEEK Column3μm4.6mm100mm1pc5020-87449
UHPLC PEEK Column3μm4.6mm150mm1pc5020-87450
UHPLC PEEK Column3μm4.6mm250mm1pc5020-87451
UHPLC PEEK Column3μm2.1mm50mm1pc5020-87444
UHPLC PEEK Column3μm2.1mm100mm1pc5020-87445
UHPLC PEEK Column3μm2.1mm150mm1pc5020-87446
UHPLC PEEK Column3μm2.1mm250mm1pc5020-87447
PEEK Column5μm4.6mm50mm1pc5020-87504
PEEK Column5μm4.6mm100mm1pc5020-87505
PEEK Column5μm4.6mm150mm1pc5020-87506
PEEK Column5μm4.6mm250mm1pc5020-87507
PEEK Column5μm2.1mm50mm1pc5020-87500
PEEK Column5μm2.1mm100mm1pc5020-87501
PEEK Column5μm2.1mm150mm1pc5020-87502
PEEK Column5μm2.1mm250mm1pc5020-87503

InertSustainSwiftC8 Non-metal Columns

DescriptionParticle Size
I.D.
Length
Qty.Cat.No.
UHPLC PEEK Column1.9µm2.1mm50mm1pc5020-87570
UHPLC PEEK Column1.9µm2.1mm100mm1pc5020-87571
UHPLC PEEK Column1.9µm2.1mm150mm1pc5020-87572
UHPLC PEEK Column1.9µm4.6mm50mm1pc5020-87573
UHPLC PEEK Column1.9µm4.6mm100mm1pc5020-87574
UHPLC PEEK Column1.9µm4.6mm150mm1pc5020-87575
UHPLC PEEK Column3µm2.1mm50mm1pc5020-87576
UHPLC PEEK Column3µm2.1mm100mm1pc5020-87577
UHPLC PEEK Column3µm2.1mm150mm1pc5020-87578
UHPLC PEEK Column3µm2.1mm250mm1pc5020-87579
UHPLC PEEK Column3µm4.6mm50mm1pc5020-87580
UHPLC PEEK Column3µm4.6mm100mm1pc5020-87581
UHPLC PEEK Column3µm4.6mm150mm1pc5020-87582
UHPLC PEEK Column3µm4.6mm250mm1pc5020-87583
PEEK Column5µm2.1mm50mm1pc5020-87584
PEEK Column5µm2.1mm100mm1pc5020-87585
PEEK Column5µm2.1mm150mm1pc5020-87586
PEEK Column5µm2.1mm250mm1pc5020-87587
PEEK Column5µm4.6mm50mm1pc5020-87588
PEEK Column5µm4.6mm100mm1pc5020-87589
PEEK Column5µm4.6mm150mm1pc5020-87590
PEEK Column5µm4.6mm250mm1pc5020-87591

InertSustainPhenylhexyl Non-metal Columns

DescriptionParticle Size
I.D.
Length
Qty.Cat.No.
UHPLC PEEK Column3μm4.6mm50mm1pc5020-87440
UHPLC PEEK Column3μm4.6mm100mm1pc5020-87441
UHPLC PEEK Column3μm4.6mm150mm1pc5020-87442
UHPLC PEEK Column3μm4.6mm250mm1pc5020-87443
UHPLC PEEK Column3μm2.1mm50mm1pc5020-87436
UHPLC PEEK Column3μm2.1mm100mm1pc5020-87437
UHPLC PEEK Column3μm2.1mm150mm1pc5020-87438
UHPLC PEEK Column3μm2.1mm250mm1pc5020-87439
PEEK Column5μm4.6mm50mm1pc5020-87496
PEEK Column5μm4.6mm100mm1pc5020-87497
PEEK Column5μm4.6mm150mm1pc5020-87498
PEEK Column5μm4.6mm250mm1pc5020-87499
PEEK Column5μm2.1mm50mm1pc5020-87492
PEEK Column5μm2.1mm100mm1pc5020-87493
PEEK Column5μm2.1mm150mm1pc5020-87494
PEEK Column5μm2.1mm250mm1pc5020-87495

InertSustainAmide Non-metal Columns

DescriptionParticle Size
I.D.
Length
Qty.Cat.No.
UHPLC PEEK Column3μm4.6mm50mm1pc5020-87424
UHPLC PEEK Column3μm4.6mm100mm1pc5020-87425
UHPLC PEEK Column3μm4.6mm150mm1pc5020-87426
UHPLC PEEK Column3μm4.6mm250mm1pc5020-87427
UHPLC PEEK Column3μm2.1mm50mm1pc5020-87420
UHPLC PEEK Column3μm2.1mm100mm1pc5020-87421
UHPLC PEEK Column3μm2.1mm150mm1pc5020-87422
UHPLC PEEK Column3μm2.1mm250mm1pc5020-87423
PEEK Column5μm4.6mm50mm1pc5020-87480
PEEK Column5μm4.6mm100mm1pc5020-87481
PEEK Column5μm4.6mm150mm1pc5020-87482
PEEK Column5μm4.6mm250mm1pc5020-87483
PEEK Column5μm2.1mm50mm1pc5020-87476
PEEK Column5μm2.1mm100mm1pc5020-87477
PEEK Column5μm2.1mm150mm1pc5020-87478
PEEK Column5μm2.1mm250mm1pc5020-87479

InertsilODS-2 Non-metal Columns

DescriptionParticle SizeI.D.LengthQty.Cat.No.
PEEK Column5μm4.6mm150mm1pc5020-87460
PEEK Column5μm4.6mm250mm1pc5020-87461

InertsilC8 Non-metal Columns

DescriptionParticle SizeI.D.LengthQty.Cat.No.
PEEK Column5μm4.6mm150mm1pc5020-87462
PEEK Column5μm4.6mm250mm1pc5020-87463

InertsilC4 Non-metal Columns

DescriptionParticle SizeI.D.LengthQty.Cat.No.
PEEK Column5μm4.6mm150mm1pc5020-87464
PEEK Column5μm4.6mm250mm1pc5020-87465

InertsilWP300 Diol Non-metal Columns

DescriptionParticle SizeI.D.LengthQty.Cat.No.
PEEK Column5μm4.6mm150mm1pc5020-87466
PEEK Column5μm4.6mm250mm1pc5020-87467

* Other packing material or dimensions are on request.
