Connection Kit for Capillary Columns

Connection Kit for Capillary EX Columns

Connection Kit for Capillary EX Columns

The Capillary EX Column Connection Kit is a dedicated connection kit that fully demonstrates the performance of inert-sill capillary EX columns. Use the column coupler provided to attach it directly to your own injector. The column coupler is used to connect the injector to the column.

Contents

  • Column Coupler (0.1 mm I.D. × 40 mm, both ends with male nuts and ferrules)
  • Capillary Tubing Connector (75 µm I.D. × 500 mm, with male nuts and ferrules)
  • PTFE Tubing (O.D. 0.375 mm Connection for Capillary Tubing) 2 pcs
  • Note) Column Coupler O.D. is 1/16 inch.

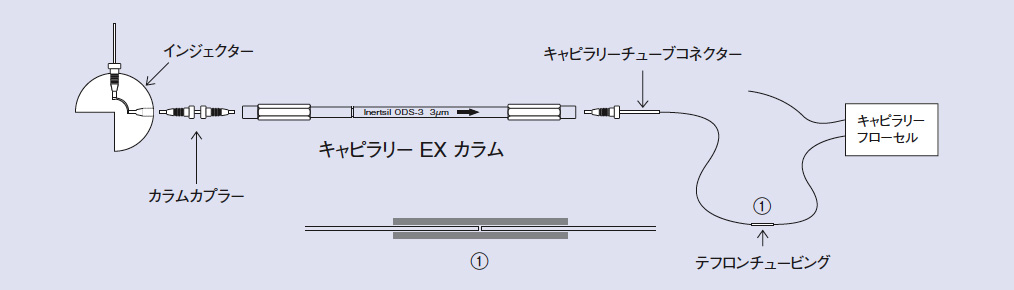

How to Connect Capillary EX Column Kit

Step 1: The column coupler is used to connect the injector to the column. In doing so, press the system to prevent dead volumes.
Step 2: The capillary tube connector is used to connect the column to the detector. One side (entrance side) 1/16 inch PTFE tubing is attached, so connect to the exit of the column using a male nut and a ferrule.
Step 3: The exit side of the capillary tube connector is a capillary tube with an outer diameter of 375 μm and can be connected to the detector using a PTFE tubing. (Insert the tube into the PTFE tubing as in following Example and seal the two ends of the capillary tube together.)

How to Connect

DescriptionQty.Cat.No.
Capillary EX Column Connection Kit1/pk5020-01880

Connection Kit for Capillary EX-Nano Columns (I.D.: 0.05 mm, 0.075 mm, 0.2 mm)

Connection Kit for Capillary EX-Nano Columns

Connection Kit for Capillary EX-Nano Columns

The Capillary EX Nano Column Connection Kit is a dedicated component that fully demonstrates the performance of Inertsil capillary EX-Nano columns. Use the column coupler provided to attach it directly to your own injector.

Contents

  • Column Coupler 40 × 0.05 mm I.D. 1/16 inch O.D. Tubing
  • Capillary Tubing Connector (with male nuts and ferrules, 1 pc/pk )
    • 300 × 0.05 mm I.D. 0.375 mm O.D. Tubing
    • 300 × 0.03 mm I.D. 0.375 mm O.D. Tubing
    • 300 × 0.02 mm I.D. 0.375 mm O.D. Tubing
  • PTFE Tubing 20 mm 2 pcs (O.D. 0.375 mm Connection for Capillary Tubing)
  • Note) Column Coupler O.D. is 1/16 inch.

DescriptionQty.Cat.No.
Capillary EX-Nano Column Connection Kit1/pk5020-01881
