Core-shell

InertCore C8

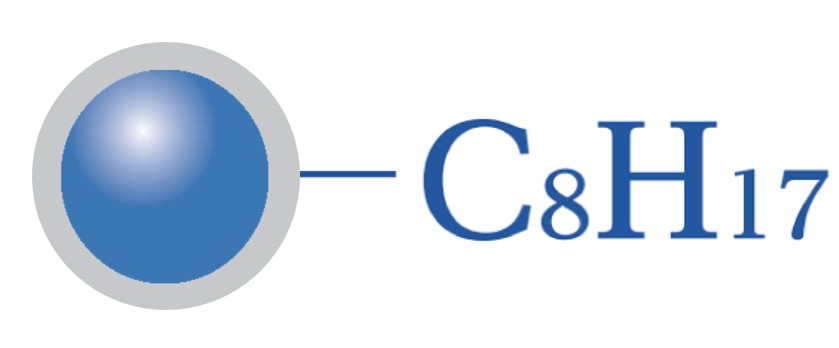

Functional Group

In core-shell particles, analyte molecules pass through a thin porous shell surrounding a solid non-porous
core. This structure significantly reduces diffusion within the particle compared to fully porous particles,
resulting in sharper peaks and higher theoretical plate numbers.

Specification


Base Material : Core-shell type silica gel Functional Group : Octyl (C8)
Particle Size : 2.6µm End-capping : Yes
Solid Core : 2.0µm Carbon Loading : 10%
Surface Area : 200m2/g USP Code : L1
Pore Size : 90Å pH Range : 1.5 - 9
    Max Pressure
 		 : 100MPa (2.1 mm I.D.)
  60 MPa  (3.0 mm I.D., 4.6 mm I.D.)


*Value calculated for the porous layer only (core excluded).

InertCore C8 Analytical Column

DescriptionParticle Size
I.D.
Length
Qty.Cat.No.
InertCore C8 Analytical Column2.6µm2.1mm50mm1pc5020-17527
InertCore C8 Analytical Column2.6µm2.1mm75mm1pc5020-17528
InertCore C8 Analytical Column2.6µm2.1mm100mm1pc5020-17529
InertCore C8 Analytical Column2.6µm2.1mm150mm1pc5020-17530
InertCore C8 Analytical Column2.6µm3.0mm50mm1pc5020-17531
InertCore C8 Analytical Column2.6µm3.0mm75mm1pc5020-17532
InertCore C8 Analytical Column2.6µm3.0mm100mm1pc5020-17533
InertCore C8 Analytical Column2.6µm3.0mm150mm1pc5020-17534
InertCore C8 Analytical Column2.6µm4.6mm50mm1pc5020-17535
InertCore C8 Analytical Column2.6µm4.6mm75mm1pc5020-17536
InertCore C8 Analytical Column2.6µm4.6mm100mm1pc5020-17537
InertCore C8 Analytical Column2.6µm4.6mm150mm1pc5020-17538

Note) The type of fitting connections used is Parker type (UP type).

InertCore C8 Guard Column

DescriptionParticle SizeI.D.LengthQty.Cat.No.
InertCore C8 Guard Column2.6µm2.1mm20mm1pc5020-17524
InertCore C8 Guard Column2.6µm3.0mm20mm1pc5020-17525
InertCore C8 Guard Column2.6µm4.6mm20mm1pc5020-17526

Note) The type of fitting connections used is Parker type (UP type).
